Aquasalis SC salt chlorinator, inline unit with touch display

Salt chlorinator

Aquasalis SC series

Compact all-in-one salt chlorinator with touch control and app connectivity. Nine models from 2 to 25 g/h, for pools up to 120 m³.

  • Controller and electrolysis cell in one compact inline unit
  • Touch panel with LED display, plus Wi-Fi and Bluetooth control via the Smart Life app
  • Adjustable output — 25, 50, 75 or 100 % power, 2 to 24 hours a day
  • Self-cleaning electrode through adjustable polarity reversal
  • IPX5 protected for outdoor installation

Online via PoolPartHub, authorised Aquasalis dealer.

Models

ModelChlorine outputPool volumeCell voltagePipe connection
SC 22 g/hup to 10 m³12 V DCD32 / D38
SC 44 g/hup to 20 m³12 V DCD32 / D38
SC 66 g/hup to 30 m³24 V DCD32 / D38
SC 88 g/hup to 40 m³24 V DC1.5″ / D50
SC 1010 g/hup to 50 m³24 / 29 V DC1.5″ / D50
SC 1212 g/hup to 60 m³24 V DC1.5″ / D50
SC 1616 g/hup to 80 m³24 V DC1.5″ / D50
SC 2020 g/hup to 100 m³29 V DC1.5″ / D50
SC 2525 g/hup to 120 m³29 V DC1.5″ / D50

Built for small plant rooms

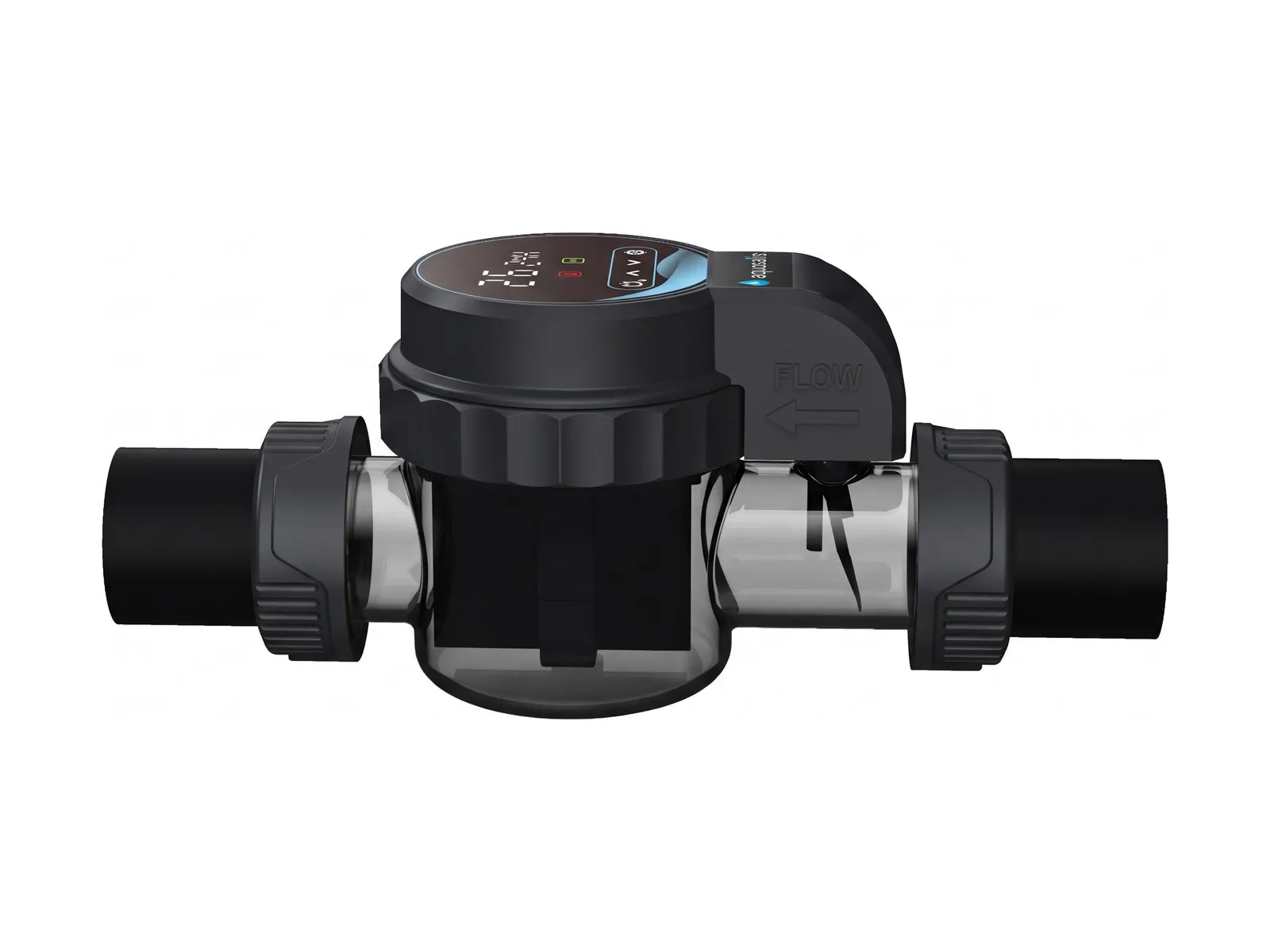

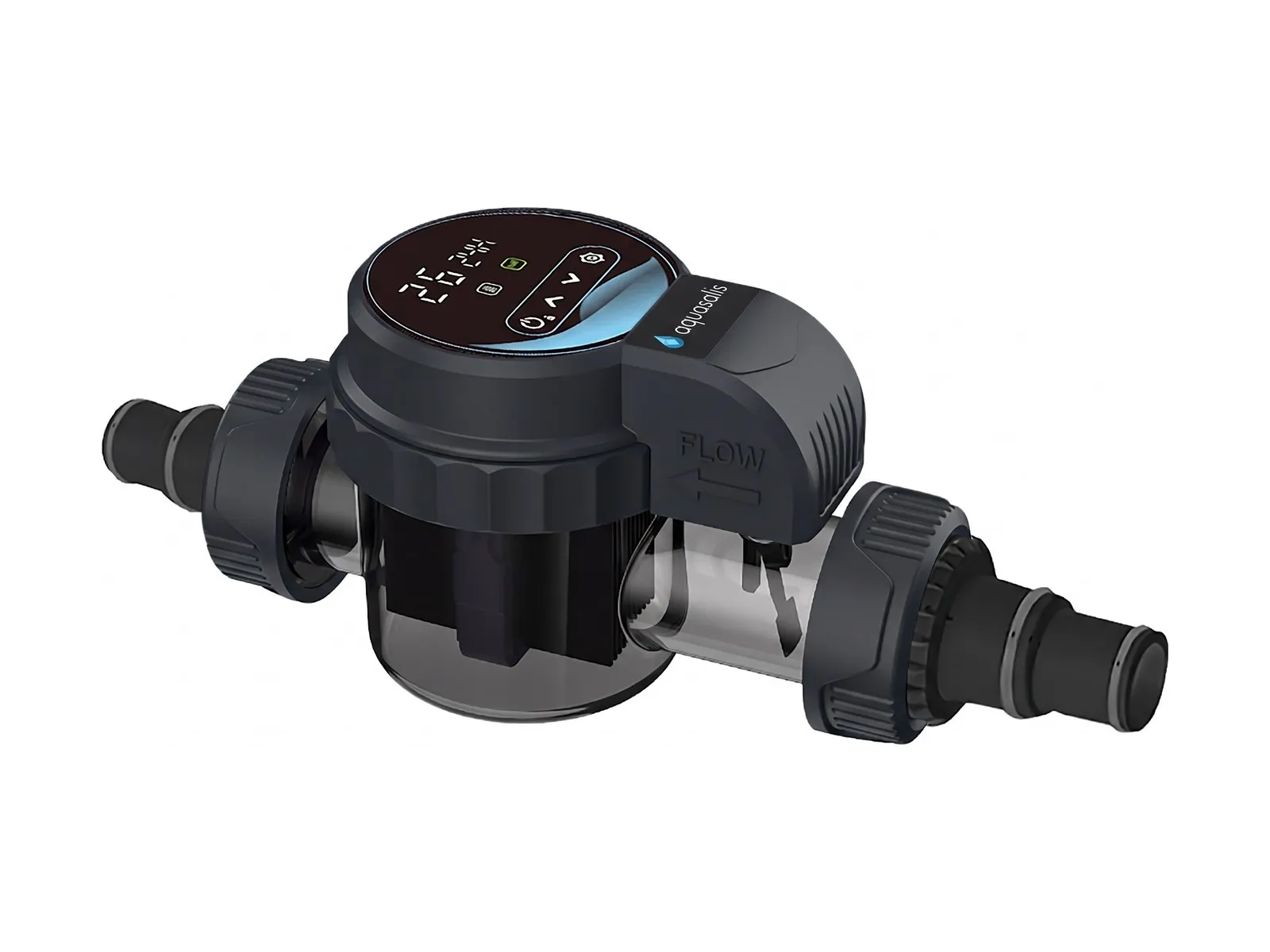

The SC combines the controller and the electrolysis cell in a single unit. Inlet and outlet sit on one axis, so it fits straight into the return line after the filter — no separate control box on the wall. The whole unit comes apart for cleaning or replacing the cell.

Control it at the pool or from your phone

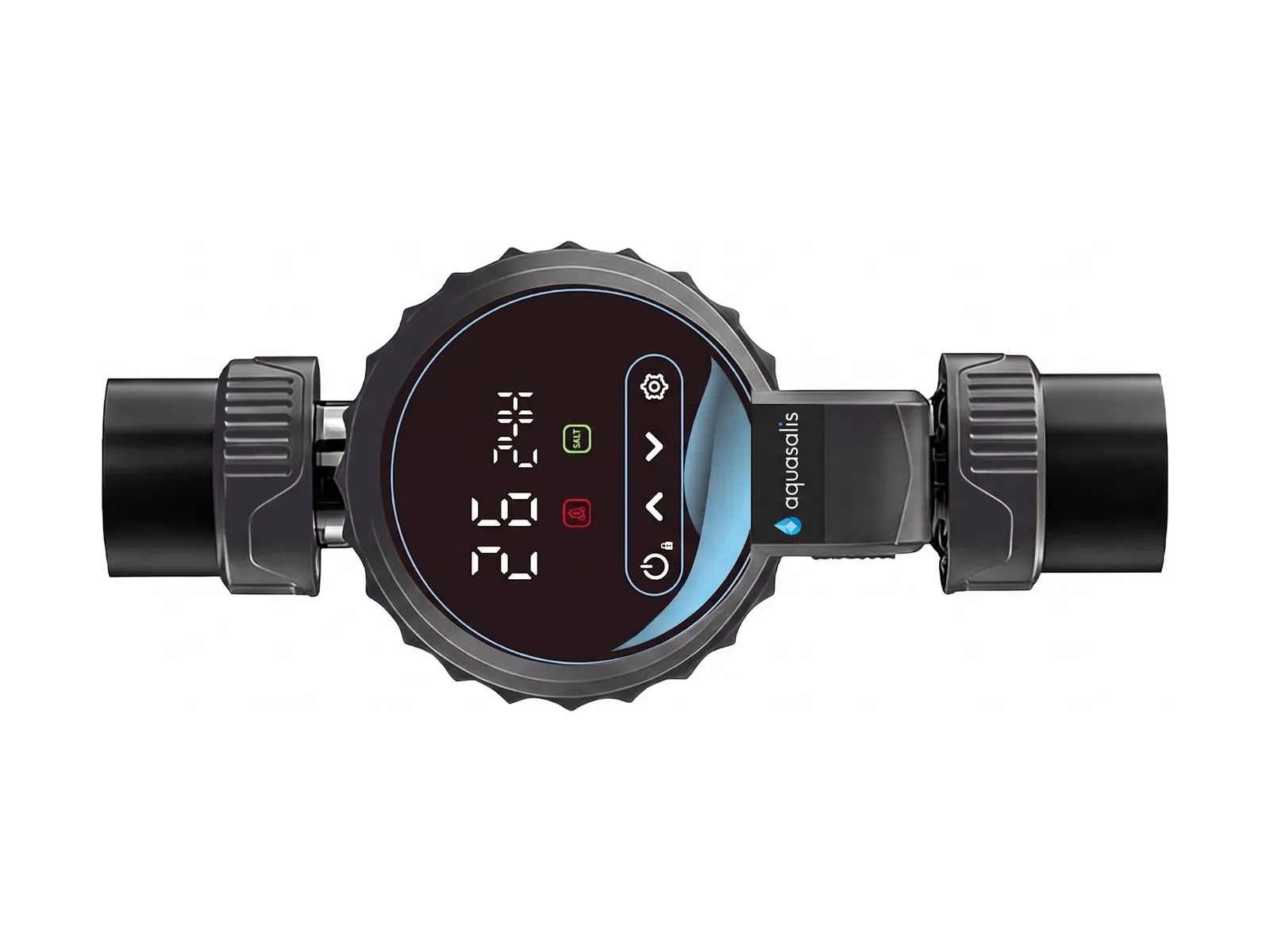

Set the power level, daily operating time and polarity reversal on the touch panel, or remotely in the Smart Life app over Wi-Fi or Bluetooth. The app also shows water temperature, salinity status and alerts. One-touch boost runs the cell at full power for 24 hours, for example after a pool party or a heavy storm. Settings are kept after a power cut.

Watches the water for you

The SC checks salinity automatically before and after each run, and on demand with the salinity button. It also monitors:

  • Water flow — an alarm when there is not enough flow through the cell
  • Water temperature — too low or too high
  • Salinity — too low or too high
  • Electrode condition, current and voltage

Two electrode versions

Every model is available with a 7,000-hour or a 10,000-hour electrode. Regular polarity reversal limits scale on the titanium plates, which helps the electrode reach its rated life.
